3LCD projector - 3300 lumens (white) - 3300 lumens (color) - WXGA (1280 x 800) - 16:10 - 720p - LAN
| Main Specifications | |
|---|---|
| Product Description | Epson BrightLink Pro 1420Wi Interactive - 3LCD projector - LAN |
| Device Type | 3LCD projector - 720p |
| Built-in Devices | Speaker |
| Brightness (White) | 3300 lumens |
| Brightness (Color) | 3300 lumens |
| Contrast Ratio | 10000:1 (dynamic) |
| Resolution | WXGA (1280 x 800) |
| Native Aspect Ratio | 16:10 |
| Color Support | 1.07 billion colors |
| Lamp Type | UHE 245 Watt |
| Lamp Life Cycle | Up to 4000 hour(s) - normal mode ¦ Up to 6000 hour(s) - economic mode |
| Video Input | RGB, composite video LAN |
| Speakers | Speaker(s) - integrated |
| Power | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 384 Watt |
| Dimensions (WxDxH) | 14.5 in x 14.8 in x 7.5 in |
| Weight | 12.3 lbs |
| General | |
| Device Type | 3LCD projector - 720p |
| Built-in Devices | Speaker |
| Expansion / Connectivity | |

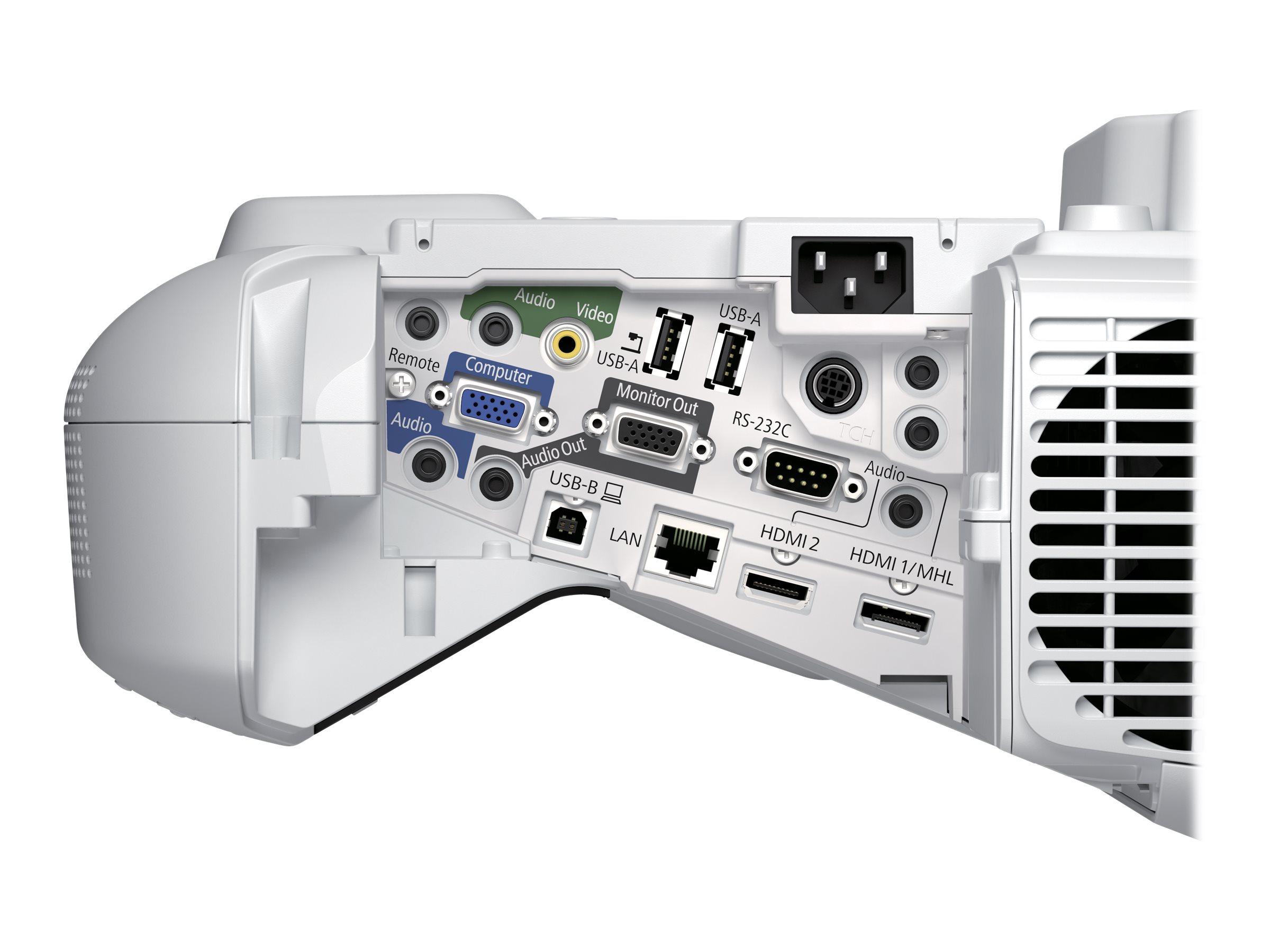

| Interfaces | 1 x VGA output - 15 pin HD D-Sub (HD-15) ¦ 1 x HDMI - 19 pin HDMI Type A ¦ 1 x VGA input - 15 pin HD D-Sub (HD-15) ¦ 1 x composite video input - RCA ¦ 1 x audio line-in - RCA ¦ 2 x audio line-in - mini-phone stereo 3.5 mm ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 1 x network - RJ-45 ¦ 1 x serial RS-232C - 9 pin D-Sub (DB-9) ¦ 2 x USB - 4 pin USB Type A ¦ 1 x USB - 4 pin USB Type B ¦ 1 x remote control - mini-phone stereo 3.5 mm ¦ 1 x Mobile High-Definition Link (MHL) / HDMI |
| Miscellaneous | |

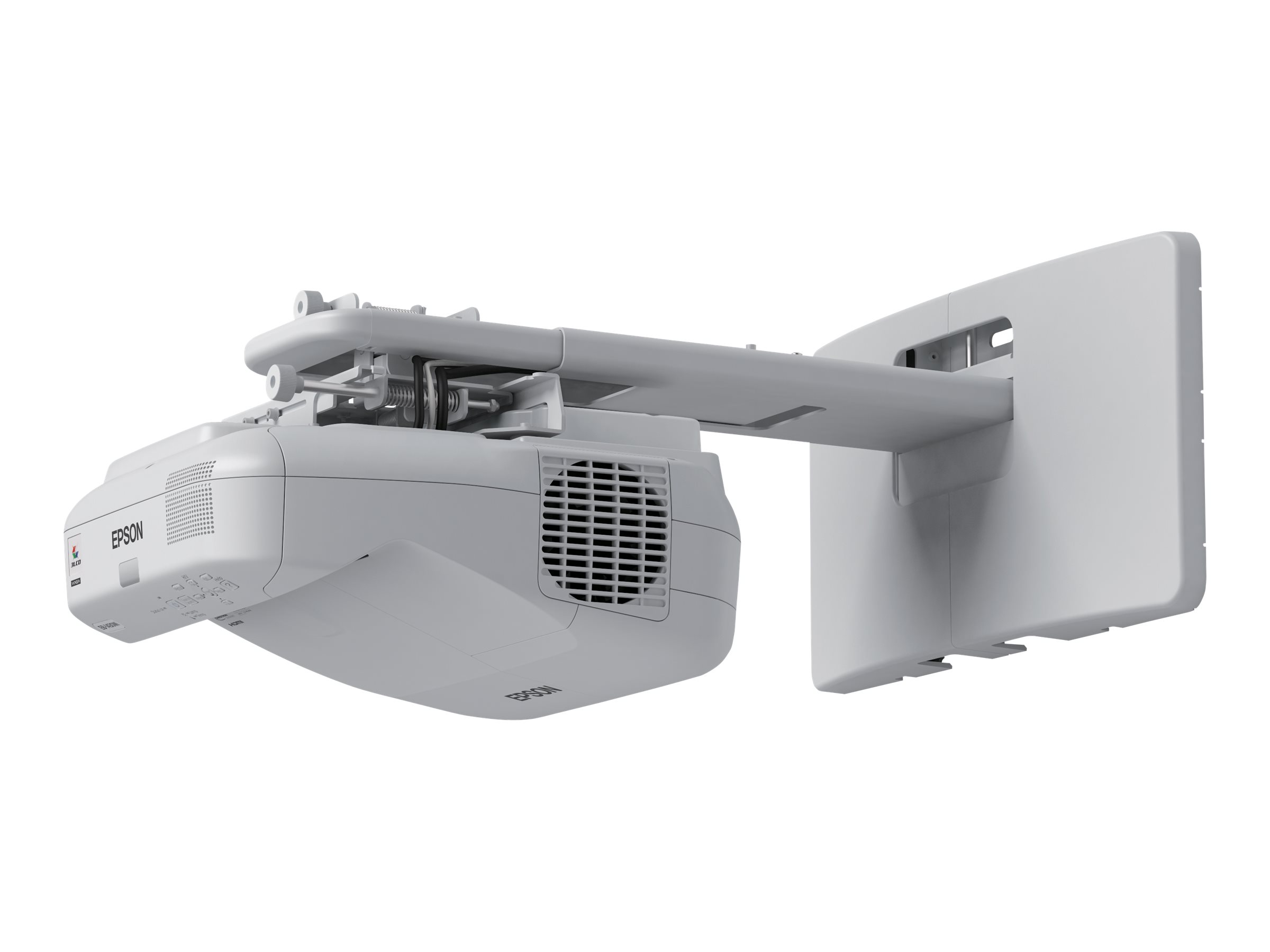

| Mounting Kit | Optional |
| Security Features | Security lock slot (cable lock sold separately) |
| Compliant Standards | RoHS |
| Power | |
| Nominal Voltage | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 384 Watt |
| Power Consumption Stand by | 2.4 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Sound Emission | 35 dB |
| Sound Emission (Economic Mode) | 28 dB |
| Video Input | |
| Analog Video Signal | RGB, composite video |
| Video Interfaces | VGA, HDMI, composite video, MHL |
| LAN and Wireless Image Transferring Protocols | Wired LAN |
| Dimensions & Weight | |
| Width | 14.5 in |
| Depth | 14.8 in |
| Height | 7.5 in |
| Weight | 12.3 lbs |
| Projector | |
| Brightness (White) | 3300 lumens |
| Brightness (Color) | 3300 lumens |
| Contrast Ratio | 10000:1 (dynamic) |
| Image Size | 29.9 in - 100 in |
| Throw Ratio | 0.27 - 0.37:1 |
| Digital Zoom Factor | 1.35x |
| Resolution | WXGA - WXGA (1280 x 800) |
| Native Aspect Ratio | 16:10 |
| Display Format | 1,024,000 pixels (1,280 x 800) x 3 |
| Color Support | 1.07 billion colors |
| Lamp Type | UHE 245 Watt |
| Lamp Life Cycle | Up to 4000 hour(s) - normal mode ¦ Up to 6000 hour(s) - economic mode |
| Features | EPSON 3LCD technology, Split Screen, Interactive Whiteboard Capable, 3x Brighter Colors |
| Lens | |
| Focus Type | Manual |
| Lens Aperture | F/1.8 |
| Keystone Correction Direction | Horizontal, vertical |
| Vertical Keystone Correction | -3 / +3 |
| Horizontal Keystone Correction | -3 / +3 |
| Speakers | |
| Type | Integrated |
| Sound Output Mode | Mono |
| Output Power / Channel | 16 Watt |
| Speakers | 1 x mixed channel |
