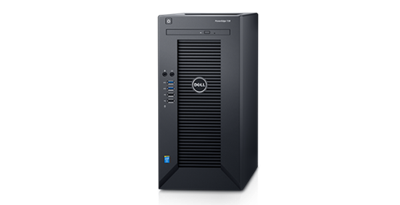

Server - MT - 1-way - 1 x Xeon E3-1225V5 / 3.3 GHz - RAM 8 GB - HDD 1 TB - DVD-Writer - HD Graphics P530 - GigE - no OS - monitor: none - BTS
| Main Specifications | |
|---|---|
| Product Description | Dell PowerEdge T30 - MT - Xeon E3-1225V5 3.3 GHz - 8 GB - HDD 1 TB |
| Type | Server - mini tower |
| Server Scalability | 1-way |
| Processor | 1 x Intel Xeon E3-1225V5 / 3.3 GHz (3.7 GHz) (Quad-Core) |
| Processor Socket | LGA1151 Socket |
| Processor Main Features | Intel Turbo Boost Technology 2, Intel Smart Cache |
| Cache Memory | 8 MB |
| Cache Per Processor | 8 MB |
| RAM | 8 GB (installed) / 64 GB (max) - DDR4 SDRAM - ECC |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | HDD 1 TB - SATA 6Gb/s - 7200 rpm |
| Optical Storage | DVD-Writer |
| Graphics Controller | Intel HD Graphics P530 |
| Networking | GigE |
| Power | AC 120/230 V (50/60 Hz) |
| OS Provided | No operating system |
| Dimensions (WxDxH) | 6.9 in x 17.9 in x 14.2 in |
| Weight | 25.79 lbs |
| Pricing Type | Build To Stock (BTS) |
| Manufacturer Warranty | Limited warranty - 1 year - response time: next business day |
| General | |
| Type | Server |
| Product Form Factor | Mini tower |
| Server Scalability | 1-way |
| Internal Bays Qty | 4 |
| Expansion / Connectivity | |
| Bays | 1 (total) / 0 (free) x external 5.25" Slim Line ¦ 4 (total) / 3 (free) x internal 3.5" |
| Slots | 2 PCIe 3.0 x4 - half-length, full-height ¦ 1 PCIe 3.0 x16 - half-length, full-height ¦ 1 PCI |
| Interfaces | 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 2.0 (2 front, 2 rear) ¦ 6 x USB 3.0 (2 front, 4 rear) ¦ 1 x headphones (1 in front) ¦ 1 x microphone (1 in front) ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 2 x DisplayPort ¦ 1 x HDMI ¦ 1 x serial ¦ 1 x audio line-in ¦ 1 x audio line-out |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year - response time: next business day |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock loop |
| Pricing Type | Build To Stock (BTS) |
| RAM | |
| Installed Size | 8 GB / 64 GB (max) |
| Technology | DDR4 SDRAM - ECC |
| Effective Memory Speed | 2133 MHz |
| Rated Memory Speed | 2400 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 4 (total) / 3 (empty) |
| Features | Unbuffered |
| Configuration Features | 1 x 8 GB |
| Networking | |
| Ethernet Controller | Intel I217-LM |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Controller | Integrated Baseboard Management Controller (iBMC) |
| Power | |
| Device Type | Power supply |
| Nominal Voltage | AC 120/230 V (50/60 Hz) |
| Power Provided | 290 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 80% |
| Storage Controller | |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Cache Memory | |
| Installed Size | 8 MB |
| Cache Per Processor | 8 MB |
| Optical Storage | |
| Type | DVD-Writer DVD-Writer |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel HD Graphics P530 |
| Video Interfaces | HDMI, DisplayPort |
| Operating System / Software | |
| OS Provided | No operating system |
| Hard Drive | |
| Type | HDD |
| Capacity | 1 x 1 TB |
| Interface Type | SATA 6Gb/s |
| Spindle Speed | 7200 rpm |
| Dimensions & Weight | |
| Width | 6.9 in |
| Depth | 17.9 in |
| Height | 14.2 in |
| Weight | 25.79 lbs |
| Processor / Chipset | |
| CPU | Intel Xeon E3-1225V5 / 3.3 GHz |
| Max Turbo Speed | 3.7 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Turbo Boost Technology 2, Intel Smart Cache |
| CPU Socket | LGA1151 Socket |
| Chipset Type | Intel C236 |
