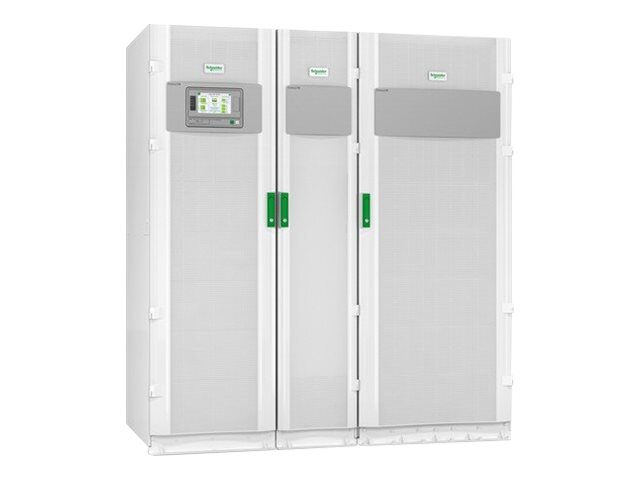

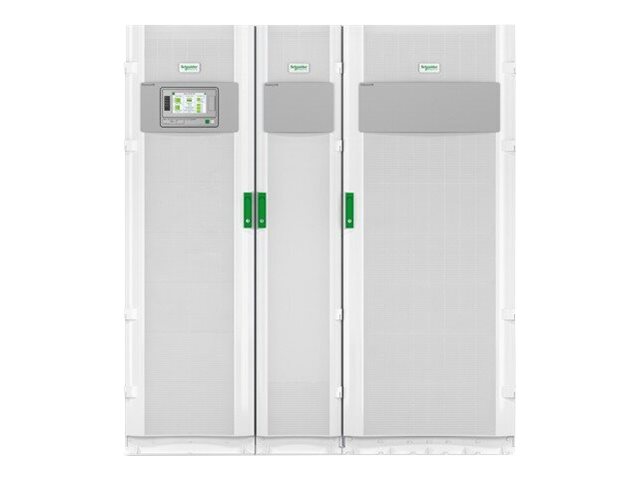

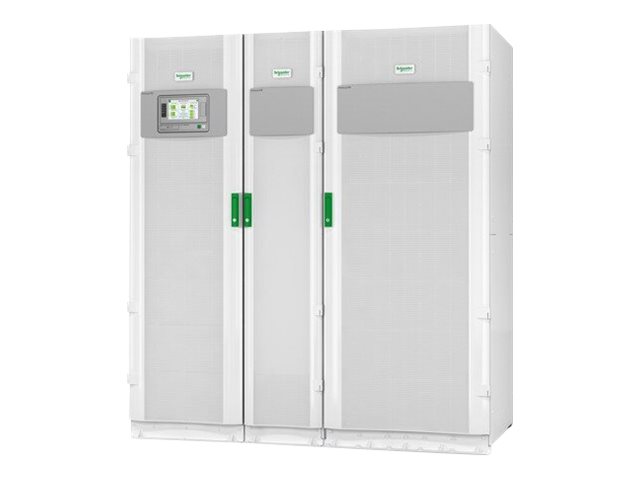

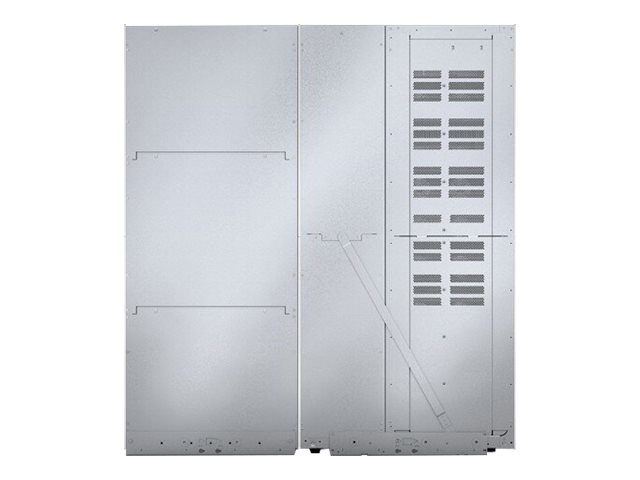

UPS - AC 480 V - 202.5 kW - 225000 VA - 3-phase - no battery - output connectors: 2 - white - with Start-Up Service 5X8
| Main Specifications | |
|---|---|
| Product Description | APC Galaxy VM - UPS - 202.5 kW - 225000 VA |
| Device Type | UPS - external |
| Bundled Services | Start-Up Service 5X8 |
| Weight | 1552.04 lbs |
| Input Wiring | 3-phase |
| Input Voltage | AC 480 V |
| Output Voltage | AC 208 V |
| Power Capacity | 202.5 kW / 225000 VA |
| Input Connectors | 1 x hardwire 4-wire (3PH + G) |
| Output connectors | 1 x hardwire 4-wire (3PH + G) ¦ 1 x hardwire 5-wire (3PH + N + G) |
| Battery | No battery |
| Color | White |
| Dimensions (WxDxH) | 39.4 in x 33.6 in x 77.6 in |
| Environmental Standards | ENERGY STAR |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | UPS - external |
| Bundled Services | Start-Up Service 5X8 |
| Color | White |
| Expansion / Connectivity | |
| Expansion Slots | 2 (total) / 2 (free) x SmartSlot |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year - on-site |
| Miscellaneous | |
| Features | Touch screen interface, audible alarm, internal bypass, 65kAIC breaker |
| Compliant Standards | UL 1778, FCC Part 15 B, IEC 62040-3, RoHS, IP20, EN 62040-3, OSHPD |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% |
| Sound Emission | 65 dBA |
| Battery | |
| Type | No battery |
| Power Device | |
| UPS Technology | On-line |
| Input Voltage | AC 480 V |
| Input Voltage Range | AC 360 - 576 V |
| Frequency Provided | 50/60 Hz |
| Input Wiring | 3-phase |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 x hardwire 4-wire (3PH + G) |
| Power Output Connectors Details | 1 x hardwire 4-wire (3PH + G) ¦ 1 x hardwire 5-wire (3PH + N + G) |
| Output Voltage | AC 208 V 50/60 Hz |
| Power Capacity | 202.5 kW / 225000 VA |
| Output Waveform | Sinewave |
| Circuit Protection | Circuit breaker |
| Power Factor (PF) | 0.9 |
| Dimensions & Weight | |
| Width | 39.4 in |
| Depth | 33.6 in |
| Height | 77.6 in |
| Weight | 1552.04 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 58.7 in |
| Shipping Depth | 41.7 in |
| Shipping Height | 84.9 in |
| Shipping Weight | 1642.82 lbs |
| Environmental Standards | |
| ENERGY STAR | Yes |
