Power array - AC 208 V - 50 kW - 50000 VA - 3-phase - no battery - RS-232 - output connectors: 1 - black - with Start-Up Service 5X8
| Main Specifications | |
|---|---|

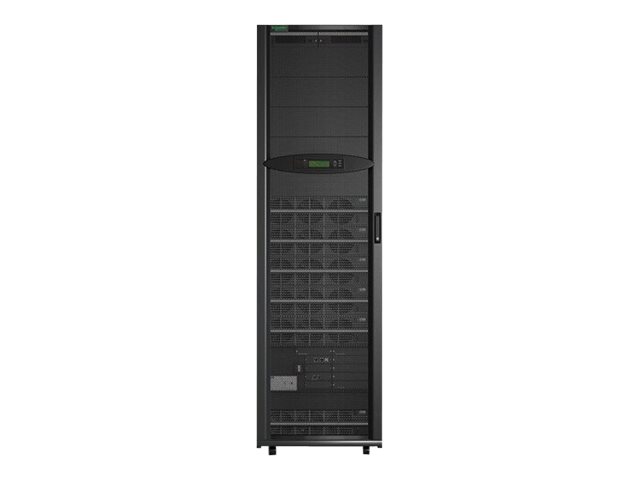

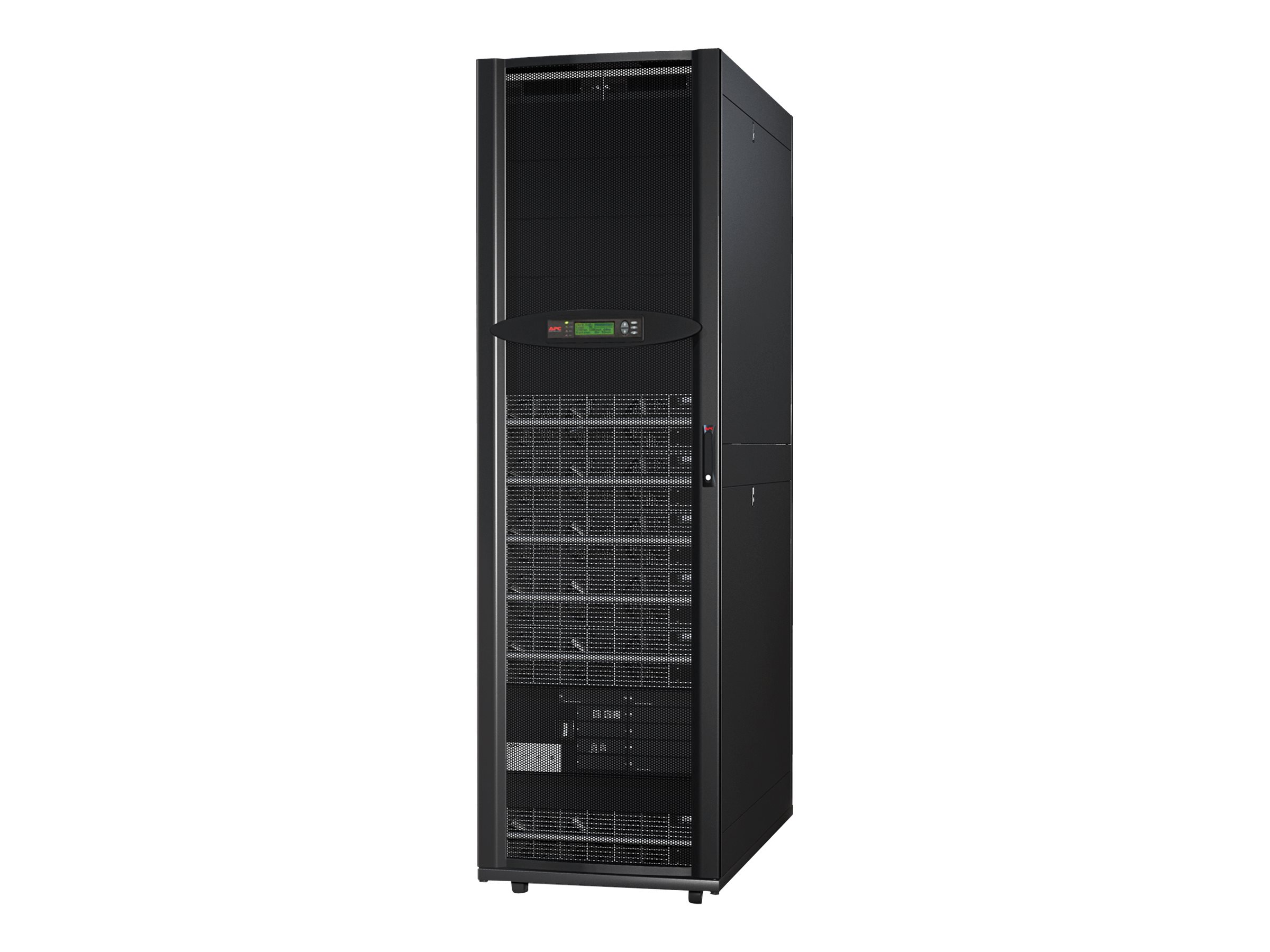

| Product Description | APC Symmetra PX 50kW Scalable to 100kW - power array - 50 kW - 50000 VA |
| Device Type | Power array - external |
| Bundled Services | Start-Up Service 5X8 |
| Weight | 966.5 lbs |
| Input Wiring | 3-phase |
| Input Voltage | AC 208 V |
| Output Voltage | AC 120/208 V ± 2% |
| Power Capacity | 50 kW / 50000 VA |
| Battery | No battery |
| Networking | RS-232 |
| Color | Black |
| Dimensions (WxDxH) | 23.6 in x 42.1 in x 79.1 in |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Power array - external |
| Bundled Services | Start-Up Service 5X8 |
| Color | Black |
| Expansion / Connectivity | |
| Expansion Slots | 2 SmartSlot |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year - on-site |
| Miscellaneous | |
| Features | Audible alarm, LCD display, built-in static bypass |
| Compliant Standards | ISO 9001, UL 1778, ISO 14001, IEC 62040-3, NEMA Type 1, FCC Part 15 A |
| Networking | |
| Remote Management Interface | RS-232 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% |
| Sound Emission | 67 dBA |
| Battery | |
| Type | No battery |
| Power Device | |
| UPS Technology | On-line |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 177 - 239 V |
| Frequency Provided | 57 - 63 Hz |
| Input Voltage Margin | ± 5% |
| Input Wiring | 3-phase |
| Frequency Required | 40 - 70 Hz |
| Output Voltage | AC 120/208 V ± 2% - 57 - 63 Hz |
| Power Capacity | 50 kW / 50000 VA |
| Output Waveform | Sinewave |
| Dimensions & Weight | |
| Width | 23.6 in |
| Depth | 42.1 in |
| Height | 79.1 in |
| Weight | 966.5 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 33.4 in |
| Shipping Depth | 47.6 in |
| Shipping Height | 84.3 in |
| Shipping Weight | 1098.99 lbs |
